DIM-420-R1 — Module for Dual-Channel AC Dimming

HOMEMASTER – Modular control. Custom logic.

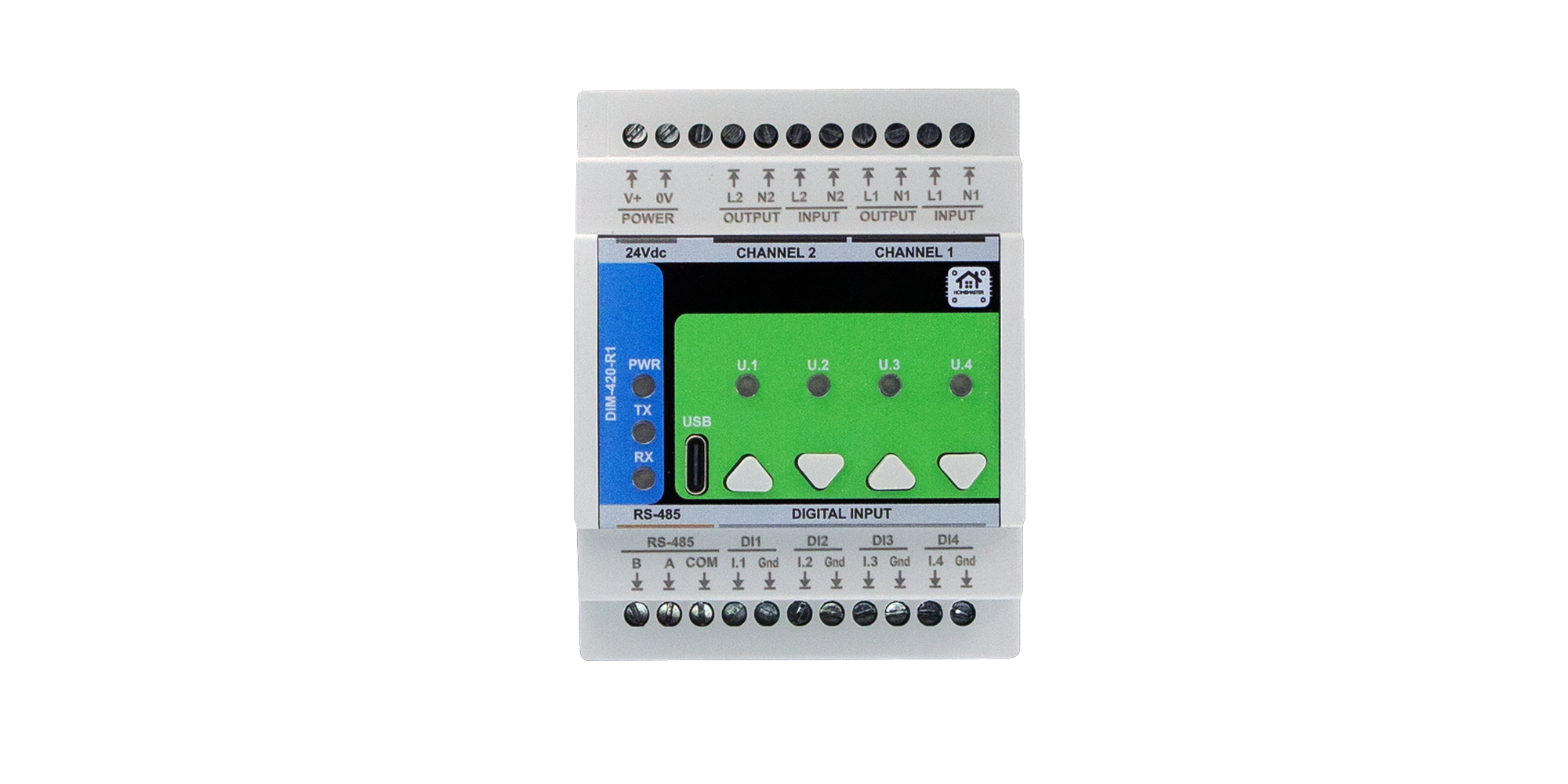

MODULE photo

Module Description

The DIM-420-R1 is a configurable smart I/O module designed for dimming AC loads via leading/trailing edge phase control.
It includes 4 digital inputs, 2 dimming outputs, 4 user buttons, and 4 LEDs, with configuration via WebConfig using USB-C (Web Serial).
It connects over RS-485 (Modbus RTU) to a MicroPLC/MiniPLC, enabling use in smart lighting, scene control, and automation of resistive or LED loads.

1. Introduction
2. Use Cases
3. Safety Information
4. Installation & Quick Start
5. DIM-420-R1 — Technical Specification
6. Modbus RTU Communication
7. ESPHome Integration Guide (if applicable)
8. Programming & Customization
9. Maintenance & Troubleshooting
10. Open Source & Licensing
11. Downloads
12. Support

1. Introduction

1.1 Overview of the DIM-420-R1 Module ✨

The DIM‑420‑R1 is a modular dimmer I/O device for dual‑channel phase‑cut AC dimming in the HomeMaster MicroPLC / MiniPLC ecosystem. It exposes 2 dimming channels, 4 isolated digital inputs, 4 configurable user buttons, 4 user LEDs, and an RS‑485 Modbus RTU interface. Setup and diagnostics are performed in‑browser via WebConfig over USB‑C (Web Serial)—no special software required.

It integrates seamlessly with MiniPLC / MicroPLC controllers, third‑party Modbus masters, ESPHome / Home Assistant, and SCADA/PLC systems. Typical use: connect wall switches to the DIs, pick Leading/Trailing edge per load, set Lower/Upper thresholds, and control scenes from a PLC or locally with press‑logic.

Quick use case:
Wire DI1–DI4 to wall switches → select Momentary or Latching with Short/Long/Double logic → choose Cut Mode and Load Type per channel → map LEDs/Buttons → connect RS‑485 A/B → control and monitor via PLC / ESPHome.

1.2 Features & Architecture

Core Capabilities

Subsystem	Qty	Description
Digital Inputs	4	isolated dry‑contact inputs (ISO1212 front‑end); modes: Momentary/Latching with Short / Long / Double / Short‑then‑Long press types. Debounced and firmware‑interpreted for actions.
Dimming Outputs	2	MOSFET‑based phase‑cut AC outputs; Leading/Trailing per channel with Lower/Upper threshold limits and zero‑cross sync/monitoring.
Relays	0	–
User LEDs	4	Steady/Blink; sources: CH1/CH2 state, DI1–DI4, or AC presence (ZC OK).
User Buttons	4	Local acknowledge/override; firmware press‑logic for toggle, ramp (ping‑pong), preset, max.
Config UI	Web Serial	WebConfig in Chromium browser over USB‑C; edit Modbus addr/baud, thresholds, cut mode, presets; live log & JSON snapshot.
Modbus RTU	RS‑485	Multi‑drop slave; FC01/05/02/03/06/16 with discrete inputs, coils, and holding registers. Defaults ID=3, 19200, 8N1.
MCU	RP2350A	Dual‑core MCU; QSPI flash for firmware/config; Arduino/PlatformIO supported.
Power	24 VDC	Protected 24 V input; on‑board isolated 5 V rails for power stages (B2405S‑2WR3) and local 3.3 V regulation.
Protection	TVS, PTC	Surge/ESD protection and resettable fuses on field I/O and RS‑485/USB/power paths.

1.3 System Role & Communication 🔌

The DIM‑420‑R1 is a standalone Modbus RTU slave on an RS‑485 multi‑drop trunk. It executes local input press‑logic and dimming behavior, mirrors state to discrete inputs/holding registers, and accepts control via coils/holding writes from a master (PLC/SCADA/ESPHome). A live JSON snapshot and event log stream over Web Serial for commissioning and diagnostics.

Role	Description
System Position	Expansion/field module on RS‑485 bus (A/B/COM).
Master Controller	MiniPLC / MicroPLC or any third‑party Modbus RTU master.
Address / Baud	Configurable via WebConfig; default Slave ID = 3, 19200 baud, 8N1 (persisted to flash).
Bus Type	RS‑485 multi‑drop with proper termination and biasing.
USB‑C Port	Setup/diagnostics, UF2 firmware updates via RP2350 bootloader; in‑browser WebConfig.
Polling Model	Master polls DI/LED/AC status and writes coils/registers for ON/OFF, presets, levels, and config.

⚠️ Note: If multiple DIM‑420‑R1 modules share the same RS‑485 line, assign unique Modbus IDs in WebConfig and verify termination/bias.

2. Use Cases

Scene Control with Wall Switches

Control dimmed lighting scenes using standard wall switches wired to the digital inputs.

Short press toggles CH1 to preset.
Long press ramps CH1 up or down.
Double press sets CH2 to max.

Setup Instructions:

Wire DI1–DI4 to wall pushbuttons.
In WebConfig → set DI1: Momentary.
Map actions:
- Short → Toggle CH1
- Long → Increase CH1
- DoubleShort → Go Max CH2
Set CH1 preset = 180 and CH2 upper threshold = 255.
Save configuration and test with physical input.

3. Safety Information

These guidelines apply to the DIM‑420‑R1 dimmer module. Ignoring them may result in equipment damage, electric shock, or fire.

⚠️ Mixed‑voltage device — The module contains both SELV/PELV control electronics and hazardous AC mains on the dimmer channels (Lx_IN/Lx_OUT, Nx_IN/Nx_OUT). The logic side is galvanically isolated (opto + isolated 5 V rails), but mains is present on the power section and output terminals. Handle as a mains device.

3.1 General Requirements

Requirement	Detail
Qualified Personnel	Installation and servicing by trained technicians only (panel wiring + mains safety).
Power Isolation	Isolate both 24 VDC and AC mains before touching wiring or terminals (lockout/tagout).
Environmental Limits	Mount inside a dry, clean, ventilated enclosure; avoid condensation, conductive dust, vibration.
Grounding	Bond the control panel to protective earth. Keep SELV grounds and mains earth/neutral managed per code.
Voltage Domains	Treat `+5V_ISO1/ISO2`, `GND_ISO1/ISO2` and L/N terminals as mains domain; do not bridge to logic `GND`.

3.2 Installation Practices

Task	Guidance
ESD Handling	Handle PCBs by the edges; use antistatic strap and grounded work surface.
DIN Mounting	Secure on 35 mm DIN rail inside an enclosure; provide strain relief on all cables.
Isolation Domains	Respect isolation: logic (24 V, RS‑485, USB) vs. power side (AC L/N, isolated 5 V rails). Never tie `GND` to `GND_ISO1/2`.
AC Load Wiring	Use proper gauge; route mains L/N to `Lx_IN/Nx_IN` and load to `Lx_OUT/Nx_OUT`. Keep AC wiring segregated from SELV cabling.
Cut‑Mode Selection	Choose Leading/Trailing to match lamp/driver; verify Lower/Upper thresholds to prevent flicker.
Over‑current Protection	Provide upstream MCB/RCD per load and locale. Use external snubbers only if required by the load.
Commissioning	With mains OFF: verify RS‑485 A/B polarity, DI logic, and LED/Button mapping. Power on with no load first, then connect loads and test gradually.

3.3 I/O & Interface Warnings

Power

Area	Warning
24 VDC Input	Use a clean SELV 24 VDC source; observe polarity. Protected by fuses/TVS and buck → 5 V/3.3 V regulators.
Isolated Rails	`+5V_ISO1/ISO2` feed the dimmer power stages; they belong to the mains domain. Do not use for external sensors.

Inputs (SELV)

Area	Warning
DI1–DI4	Dry contacts / isolated low‑voltage only (isolated front end). Do not apply mains. Use `DIx_GND` returns and configure debounce/invert in UI.

Dimming Channels (MAINS)

Area	Warning
CH1 / CH2 AC Terminals	`Lx_IN/Lx_OUT, Nx_IN/Nx_OUT` carry hazardous mains. Use appropriate insulation, creepage/clearance, and enclosure practices. Components include HV MOSFETs (650 V class) and opto interfaces.
Load Types	Use loads compatible with selected Leading/Trailing edge. Many LED drivers require Trailing; check the datasheet.
Snubbers/EMI	Internal suppression is provided in the power stage; add external RC snubbers only if the load manufacturer requires it. Keep mains wiring short and twisted where possible.

Communication & USB (SELV)

Area	Warning
RS‑485 (A/B/COM)	Use twisted pair (shielded). Terminate at bus ends (≈120 Ω). Maintain SELV separation from AC wiring.
USB‑C (setup only)	For configuration/UF2 only. Avoid connecting a PC to the USB port while panels are open and mains wiring is exposed; mind ground loops.

✅ Pre‑Power Checklist

All AC and SELV cables are routed separately with strain relief.
No bridges between logic GND and GND_ISO1/2; isolation gaps unobstructed.
RS‑485 polarity/termination verified; DI wiring and logic mode match configuration.
Cut Mode and Lower/Upper thresholds set per lamp/driver datasheet; start with light loads.
Upstream MCB/RCD sized for the load; enclosure closed before applying mains.

4. Installation & Quick Start

The DIM‑420‑R1 is a smart dual-channel dimmer with Modbus RTU and onboard USB‑C WebConfig. Setup has two main stages:

Wiring & power (24 V + RS‑485 + AC load)
Digital configuration (WebConfig → Modbus ID, Cut Mode, etc.)

4.1 What You Need

Category	Item	Details
Hardware	DIM‑420‑R1	DIN-rail dimmer with 2 AC outputs, 4 DIs, 4 buttons, 4 LEDs, USB‑C, RS‑485
	Controller (master)	HomeMaster MiniPLC / MicroPLC or any Modbus RTU master
	24 VDC PSU (SELV)	Regulated 24 VDC to `V+ / 0V` (logic + UI). AC loads powered separately.
	RS‑485 Cable	Twisted pair (shielded). Use `A/B/COM`, terminate with 120 Ω if needed.
	USB‑C cable	For WebConfig via Chromium browser (setup only)
Software	WebConfig (built-in)	Open `ConfigToolPage.html` in a Chromium browser
	PLC/HA YAML (optional)	For ESPHome/Home Assistant: exposes CH/DI/LED control
Field I/O	AC Load	CH1/CH2 outputs to trailing- or leading-edge dimmable loads
	DI Switches	Wall switches (dry contact). Use `DIx` + `GND`. Momentary/latching supported.
	RS‑485 bus	A / B / COM (use shielded twisted pair). COM is optional GND ref
	Power Terminals	`V+`, `0V` = logic power (SELV). `Lx/Nx IN/OUT` = mains side.

💡 Quick path mount: wire 24 VDC, RS‑485 (A/B/COM), and DI → connect USB‑C → open WebConfig → set Modbus & cut mode → tune thresholds → map DIs/LEDs → save → disconnect USB → go live.

4.2 Power

The DIM‑420‑R1 uses 24 VDC SELV for logic, UI, RS‑485, and Web Serial.
AC power is handled separately by the dimming channels (see §4.4).

🔌 Supply Details

Type	Description
24 VDC Input	Primary logic power. Connect `V+` / `0V`. Protected by fuse + TVS.
AC Power	CH1/CH2 output sections are powered via `Lx_IN/Nx_IN` terminals. Do not share logic power and AC domains.
Internal Rails	Onboard 5 V + 3.3 V (buck-regulated) for logic, UI, and isolated side.

⚡ Current

~50 mA idle (logic + UI only)
Add budget if using all 4 LEDs, buttons, and rapid RS‑485 comms.
AC loads pull from separate mains lines — never through the 24 V rail.

4.3 Networking & Communication

DIM‑420‑R1 supports RS‑485 Modbus RTU for runtime control and USB‑C WebConfig for setup.

4.3.1 RS‑485 (Modbus RTU)

🧷 Terminals

A B COM

Located bottom-left on module:

Pin	Description
A / B	RS‑485 differential pair
COM	Optional GND reference (connect to controller GND if needed)

Use shielded twisted pair, terminate at both ends (~120 Ω), and bias if required.

🔁 Protocol

Parameter	Value
Role	Slave (DIM‑420‑R1)
Address Range	1–247 (default = `3`)
Baud	9600–115200 (default = `19200`)
Format	8 data bits, No parity, 1 stop bit (8N1)

4.3.2 USB‑C (WebConfig)

For setup/diagnostics via Chromium:

🖥 Steps

Connect USB‑C to PC
Open ConfigToolPage.html (local or hosted)
Click Connect (Web Serial)
Set:
- Modbus Address & Baud
- Channel Cut Mode (Leading/Trailing)
- Lower/Upper thresholds
- Input mode: Momentary/Latching
- Map LEDs / Buttons
Click Save
Disconnect USB → RS‑485 master takes over

🔐 If Connect is disabled, ensure you’re using Chromium + USB permission is granted. On macOS/Linux, close any app that may be holding the port (e.g., serial monitor).

Let me know if you’d like the follow-up section 4.4 Wiring Examples or 5 Controller Integration.

4.4 Installation & Wiring

The DIM‑420‑R1 separates low‑voltage logic (24 VDC, RS‑485, USB‑C, DIs) from mains‑side dimmer outputs (L/N IN/OUT). Use the visuals below when wiring.

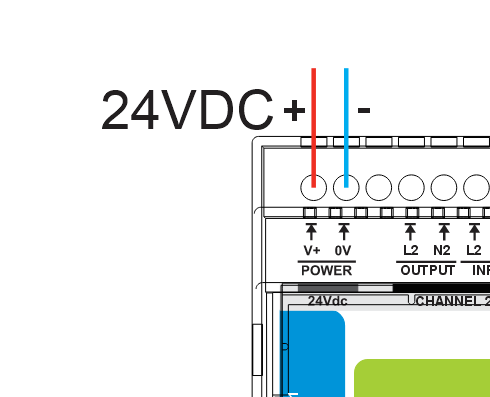

🔌 24 VDC Logic Power

Connect regulated 24 VDC (SELV) to the top‑left POWER terminals V+ and 0V.
This powers the MCU, LEDs, USB‑C (setup), and RS‑485 interface.

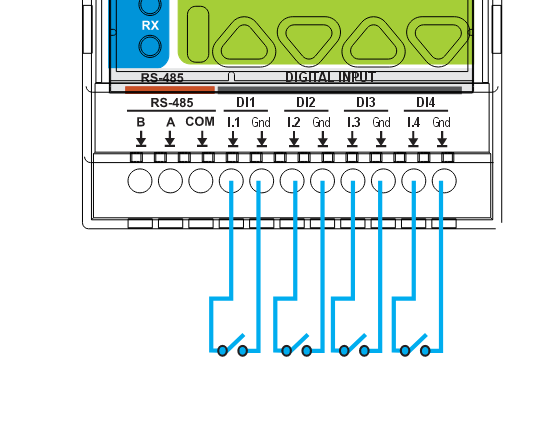

🔘 Digital Inputs (DI1–DI4)

Wire dry‑contact switches to the opto‑isolated inputs.
Each input has its own paired Gnd and must be wired independently.
Input mode (Momentary/Latching), debounce, invert, and press‑logic are set in WebConfig.

Tip: keep DI wiring separate from mains cabling and provide strain relief.

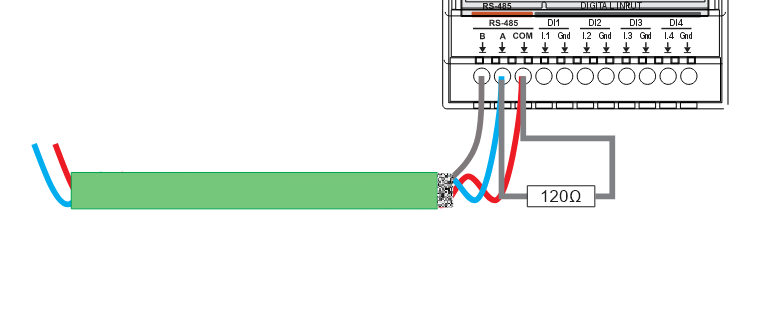

🧷 RS‑485 (Modbus RTU)

Bottom‑left terminals are labeled B A COM (as on the front panel).

B / A → RS‑485 differential pair (use shielded twisted pair)
COM → optional reference ground to the controller
Terminate the bus at both ends (~120 Ω) if not already present
Defaults: Slave ID 3, 19200 baud, 8N1 (change in WebConfig)

🧰 USB‑C Port (Front)

For setup/diagnostics only:

In‑browser WebConfig over Web Serial (Chromium‑based browsers)
Firmware updates via UF2 bootloader

Disconnect USB‑C after commissioning; use RS‑485 for runtime control.

4.5 Software & UI Configuration

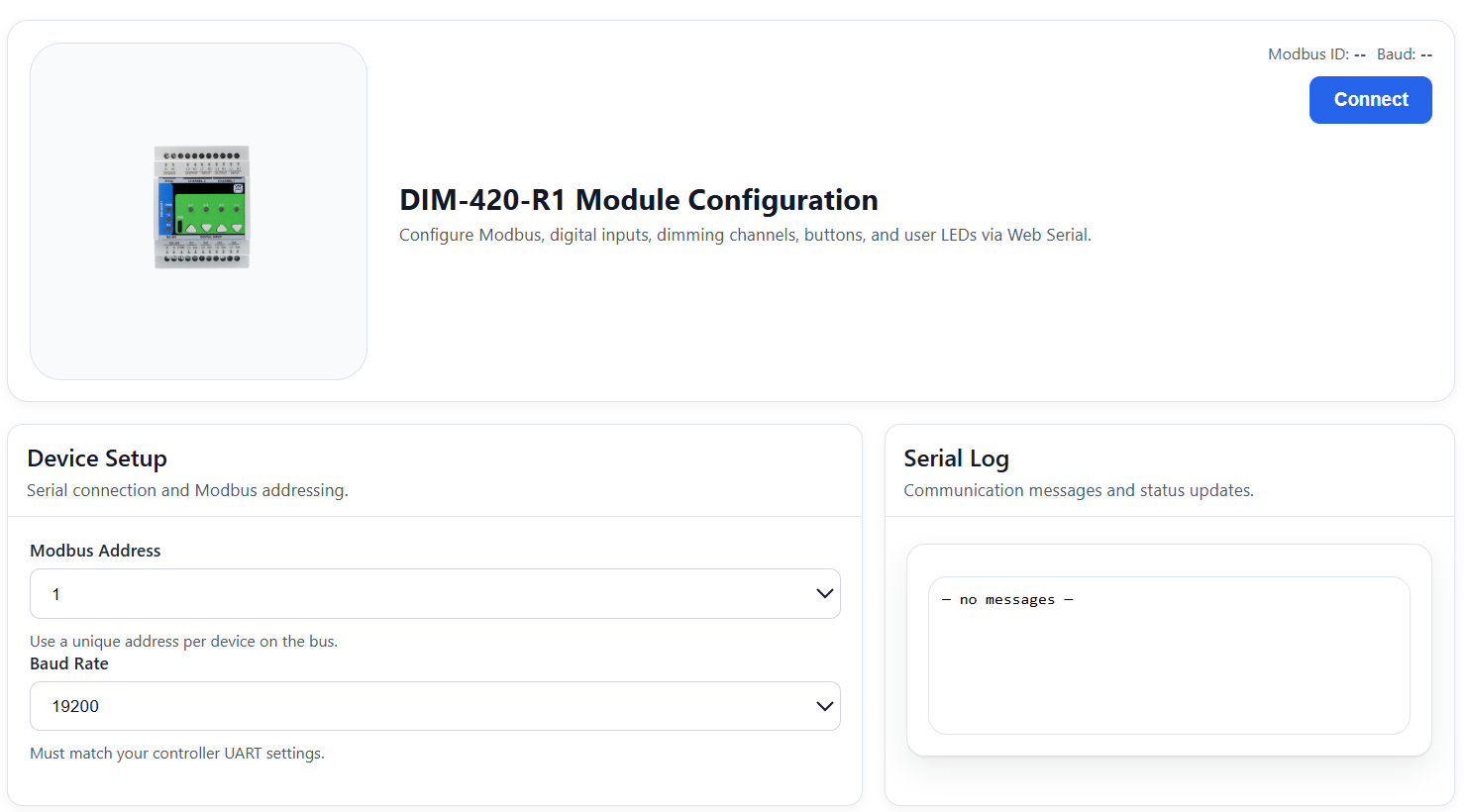

You can configure the DIM‑420‑R1 entirely from a Chromium browser using Web Serial. No drivers or apps required.

🔗 Online WebConfig:
https://www.home-master.eu/configtool-dim-420-r1

🖥 Browser & Cable

Use a Chromium‑based browser (Chrome / Edge / Brave).
Connect a USB‑C cable to the module.
Power the module with 24 VDC (USB only provides data).

🔗 Modbus Connection

Open the WebConfig tool from the link above.
Select the current Modbus Address and Baud Rate.
Click Connect and allow Serial access.
The Active Modbus Configuration banner shows detected values.

Default: Slave ID = 3, Baud = 19200, 8N1.

A live Serial Log keeps the last 5 messages for quick feedback.

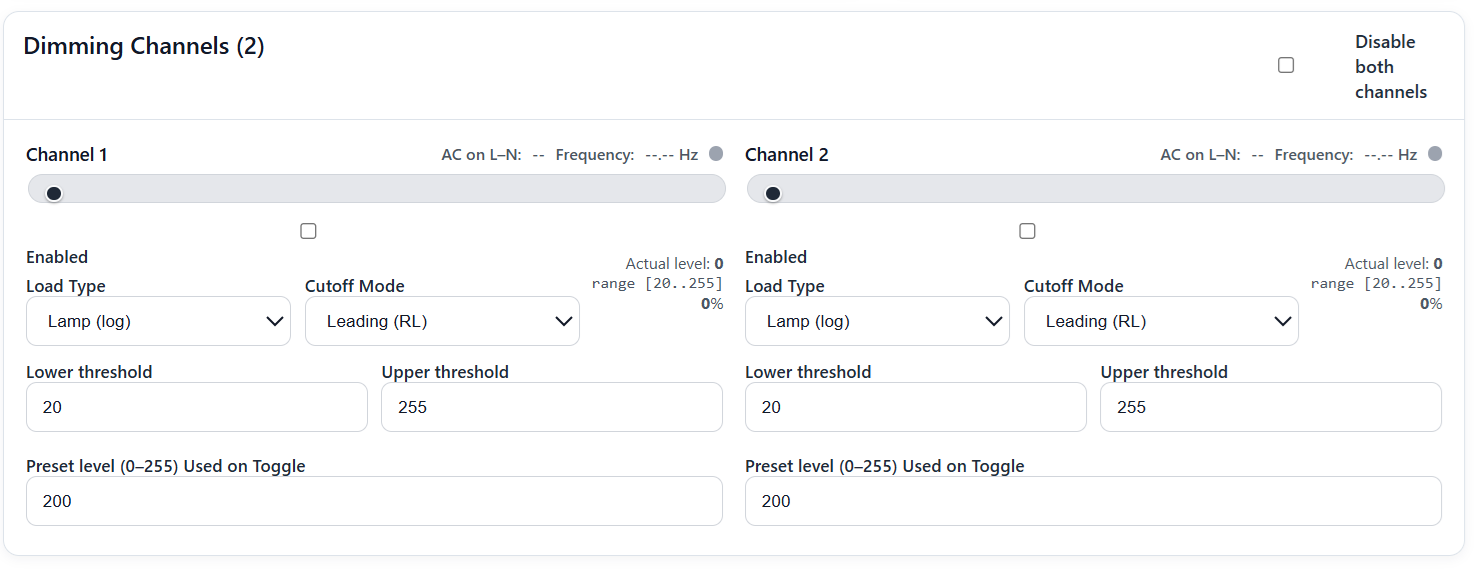

🎚 Dimming Channels (CH1 & CH2)

Each dimmer channel can be configured for its intended load and behavior:

AC Presence / Frequency badges confirm input signal quality.
Load Type: Lamp (log), Heater (linear), or Key (non‑dimmable).
Cutoff Mode: Leading (RL) or Trailing (RC).
Lower/Upper Thresholds: Clamp range for reliable dimming.
Preset Level: Value used when toggle/on events occur.
Percent Slider: Sends live target; UI reflects actual level (0–255).

Changes apply instantly and persist to flash ~1.5s after the last edit.

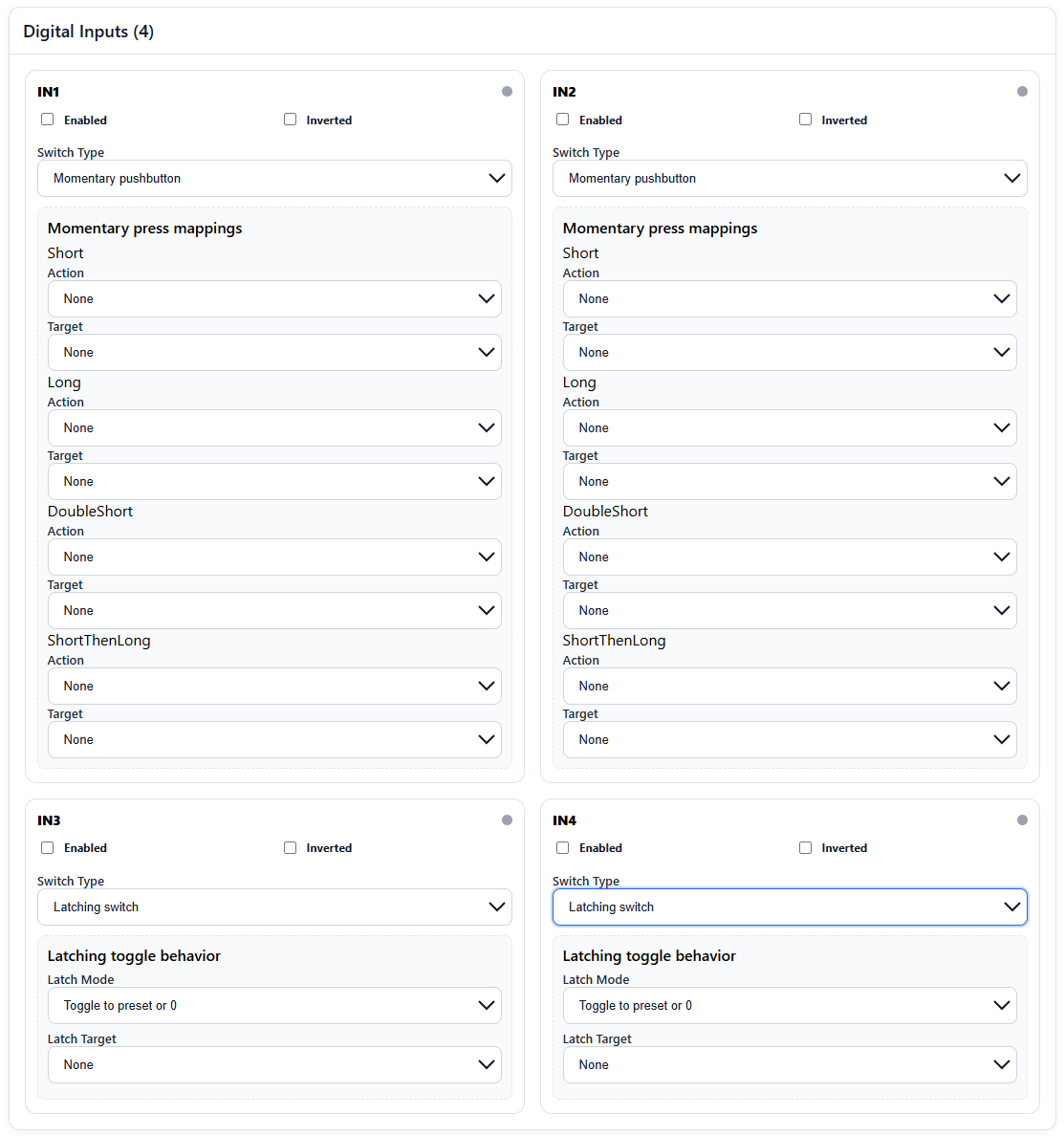

🟢 Digital Inputs (DI1–DI4)

Configure press logic, target channels, and press actions:

Input mode: Momentary or Latching
Mappable press types: Short, Long, Double, Short‑then‑Long
Actions: Turn on/off, Toggle, Ramp, Go to MAX, Ping‑pong

Each DI has its own mapping per event and an optional invert.

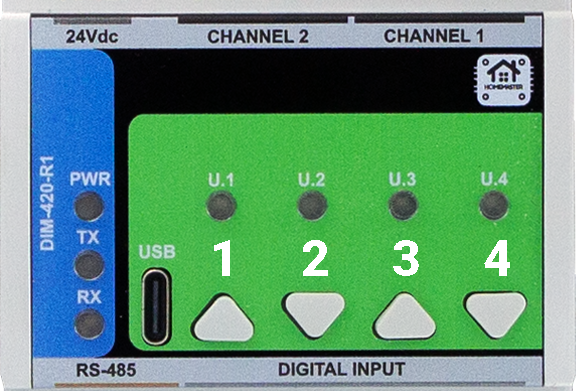

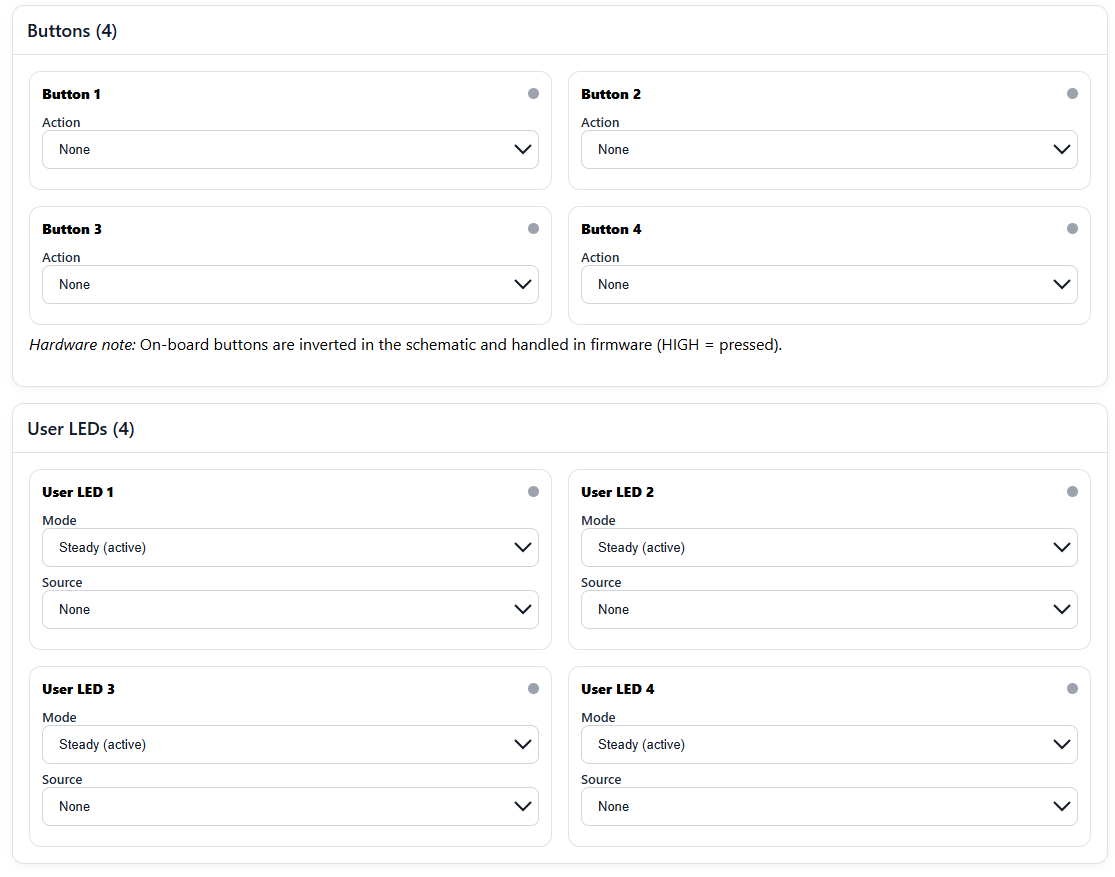

🔘 Buttons & LEDs

Configure onboard pushbuttons and indicator LEDs:

Buttons: Trigger actions like Toggle CH1, Ramp up/down, MAX preset.
LEDs: Mode (Steady / Blink) and Source (Channel or None).

Button presses are de‑bounced and detected in firmware. LED states are updated live.

💾 Save & Restore

Config is stored automatically in flash after changes.
Settings persist through power loss and reset.

If Connect is greyed out: check USB cable, browser support (Chrome/Edge), and Serial permissions.

5. DIM‑420‑R1 — Technical Specification

5.1 Diagrams & Pinouts

| System Block Diagram | MCU Pinout | |----------------------|------------| | ![](/homemaster-dev/DIM-420-R1/Images/DIM_Diagram.png) | ![](/homemaster-dev/DIM-420-R1/Images/DIM_MCU_Pinouts.png) | | Field Board Layout | MCU Board Layout | |--------------------|------------------| | ![](/homemaster-dev/DIM-420-R1/Images/FieldBoard_Diagram.png) | ![](/homemaster-dev/DIM-420-R1/Images/MCUBoard_Diagram.png) |

5.2 I/O Summary

Interface	Qty	Description
Digital Inputs	4	Opto-isolated sourcing inputs, surge-protected
Dimming Outputs	2	Phase-cut AC outputs (MOSFET, Leading/Trailing)
User Buttons	4	Local override / toggle / ramp / preset actions
User LEDs	4	Configurable (CH state, AC presence, DI state)
RS‑485 Bus	1	Modbus RTU slave (A/B/COM)
USB‑C Port	1	Configuration & firmware via Web Serial (USB)
Relays	0	Not present (uses solid-state AC dimming)

5.3 Electrical Specifications

Parameter	Value
Supply Voltage (V+)	24 VDC ±10% SELV
Power Consumption	Typ. 1.85 W / Max. 3 W
Logic Rails	5 V (Buck), 3.3 V (LDO)
Isolated Power Rails	+5V_ISO1 / +5V_ISO2
Dimming Outputs	110/230 VAC, Leading/Trailing
DI Input Threshold	24 VDC, opto-isolated (ISO1212)
USB-C Function	Web Serial + UF2 upload
RS-485 Interface	115.2 kbps max, Modbus RTU
Temperature Range	0…+40 °C
Humidity Range	≤ 95 % RH, non-condensing

⚠ Installer note: Fuse 24 VDC input externally; protect AC loads per local code.

5.4 Terminal Map

All terminals are 5.08 mm pitch, 300 V / 20 A rated, 26–12 AWG.

Group	Terminals	Description / Notes
POWER	V+, 0V	Logic power (24 VDC SELV)
DI	DI1–DI4 + GND pairs	Opto-isolated inputs; each has dedicated GND
AC OUT	Lx_IN/OUT, Nx_IN/OUT	Dimmed output channels (CH1/CH2)
RS‑485	A, B, COM	Differential bus + optional ground ref
USB-C	Front panel USB-C port	For setup only (Web Serial & UF2)

5.5 Absolute Electrical Specifications

Parameter	Min	Typ	Max	Notes
Supply voltage (V+)	20 V	24 V	30 V	SELV; reverse polarity protected
Power consumption	–	1.85 W	3 W	Logic only (no load)
Logic rails	–	5 V / 3.3 V	–	Buck + LDO derived
Isolated rails	+5V_ISO1/2	–	–	Internal use for dimmer stage only
Digital inputs	–	–	24 VDC	ISO1212 front-end, protected
AC dimmer outputs	–	–	110/230 VAC	2× WMM36N65C4 (MOSFET)
RS-485 Interface	–	–	115.2 kbps	TVS/ESD + fail-safe
USB-C (setup only)	5 V	–	–
Ambient temperature	0 °C	–	+40 °C	32–104 °F
Humidity (operating)	–	–	95 %RH	Non-condensing

5.6 Protection Features

24 V Input
- Diode reversed path
- TVS: SMBJ33A
- High-side P-MOS + fuse (F1206HI8000V024TM)
DI Channels
- ISO1212 opto-isolated front end
- PTC: 1206L016WR
- TVS: SMBJ26CA
Dimmer Stage
- Power switches: WMM36N65C4, 650 V
- Isolation: SFH6156‑3T optocouplers
- Input bridge: MB6S
- Zero-cross & snubber integrated
RS‑485
- Transceiver: MAX485
- TVS: SMAJ6.8CA
- Pull-up/down: 4.7 kΩ bias
- Termination pads included
USB-C
- USB-UART: RP2350
- ESD Clamp: PRTR5V0U2X
- Data-line resistors: 27 Ω

5.7 Mechanical

Attribute	Value
Mounting	DIN rail (EN50022, 35 mm)
Material	PC/ABS, UL V-0
Color / Finish	Light Gray / Smoke, Matte
Dimensions (L×W×H)	157.4 × 91 × 58.4 mm
Division Units	9M
Net Weight	420 g
Terminal Specs	26–12 AWG, 0.5–0.6 Nm torque

5.8 Environmental & Compliance

Parameter	Value
Operating Temp	0 °C … +40 °C
Operating Humidity	≤ 95 % RH, non-condensing
Ingress Protection	IP20
Pollution Degree	2
Impulse Voltage	2.5 kV (UL60730-1)
Operation Class	Type 1 (UL60730-1, CSA E60730-1)
Altitude Rating	≤ 2000 m
Certifications	CE, UL60730-1, CSA E60730-1
RoHS / Pb-free	✅ Compliant

6. Modbus RTU Communication

The DIM‑420‑R1 communicates via Modbus RTU over RS‑485 as a slave device, polled by a PLC, SCADA, or ESPHome-based controller. It exposes discrete inputs, coils, and holding registers for full control and monitoring of the module.

6.1 Default Communication Settings

Parameter	Default
Slave ID	`3`
Baud Rate	`19200`
Framing	`8N1`
Protocol	Modbus RTU
Port	RS‑485 (A/B/COM)
Change via	USB-C WebConfig

6.2 Address Map

The following Modbus function codes are used:

FC01 / FC05 — Coils (write-triggered actions)
FC02 — Discrete Inputs (status flags)
FC03 / FC06 / FC16 — Holding Registers (configuration + real-time control)

6.3 Discrete Inputs (FC02)

Addr	Name	Description
1–4	DI1–DI4	Digital input state (debounced, inverted)
50	CH1_ON	CH1 active (enabled + Level > 0)
51	CH2_ON	CH2 active
90–93	LED1–LED4	Current physical LED output state
120	ZC1_OK	Zero-cross detected on CH1 AC input
121	ZC2_OK	Zero-cross detected on CH2 AC input

6.4 Coils (FC01 / FC05)

Coils are momentary triggers. Write 1 to trigger; auto-resets to 0.

Addr	Action
200	CH1 ON (to Preset)
201	CH2 ON (to Preset)
210	CH1 OFF
211	CH2 OFF
300–303	DI1..DI4 ENABLE
320–323	DI1..DI4 DISABLE

6.5 Holding Registers (FC03 / FC06 / FC16)

Addr (CH1/CH2)	Name	Range / Type	Description
400 / 401	Level	0–255 (U8)	Output level (0 = OFF)
410 / 411	Lower	0–255 (U8)	Minimum level to light the load
420 / 421	Upper	0–255 (U8)	Maximum level
430 / 431	Freq_x100	Hz×100 (RO)	Measured AC mains frequency
440 / 441	Percent×10	0–1000 (U16)	Target dimming percent ×10
460 / 461	LoadType	0=Lamp, 1=Heater, 2=Key	Affects mapping and logic
470 / 471	CutMode	0=Leading, 1=Trailing	Phase-cut mode
480 / 481	Preset	0–255	Value used by CH ON coil

Writing Percent×10 immediately recalculates and applies Level based on LoadType, Lower/Upper limits.

6.6 Register Usage Examples

Operation	Write To / Read From
Turn CH1 ON	Coil `200` ← 1
Set CH2 OFF	Coil `211` ← 1
Set CH1 to 50%	Reg `440` ← 500
Change CH2 to Trailing edge	Reg `471` ← 1
Clamp CH1 Level (e.g. 25–200)	Reg `410` ← 25, `420` ← 200
Disable DI3	Coil `322` ← 1
Enable DI3	Coil `302` ← 1

6.7 Polling Recommendations

Interval: 500–1000 ms recommended for discrete input/holding register polling
Write timing: Momentary coils are safe to write every 1–2 seconds max
Avoid flooding: Do not poll coils or write continuously at high speed
Sync strategy: Read current Level before changing Percent to avoid flicker

6.8 Additional Notes

All config/state is mirrored over Modbus and Web Serial snapshot
Modbus address and baud rate are editable via USB-C (WebConfig)
Disabling a DI via coil makes its press events inert until re-enabled

7. ESPHome Integration Guide

The DIM‑420‑R1 integrates natively with ESPHome and Home Assistant via Modbus RTU using a plug-and-play YAML package.
No local logic is required — all channel control, DI events, LEDs, and feedback are exposed as entities.

7.1 Installation via `packages:` Block

Add the DIM‑420‑R1 using the official GitHub YAML:

packages:
  dim1:
    url: https://github.com/isystemsautomation/homemaster-dev
    ref: main
    files:
      - path: DIM-420-R1/Firmware/default_dim_420_r1_plc/default_dim_420_r1_plc.yaml
        vars:
          dim_prefix: "DIM#1"
          dim_id: dim_1
          dim_address: 5
    refresh: 1d

Replace dim_address with the actual Modbus ID of your device.
dim_prefix controls the name of entities in Home Assistant (e.g., DIM#1 CH1 Level).

7.2 Required UART/Modbus Setup

Add this to your configuration.yaml if not using a package:

uart:
  tx_pin: 17
  rx_pin: 16
  baud_rate: 19200

modbus:
  id: modbus_bus

The DIM‑420‑R1 supports 9600–115200 baud. Defaults to 19200/8N1/ID 3.

7.3 Exposed Entities (Per Package)

Entity Type	Description
`switch:`	CH1/CH2 ON triggers (momentary)
`number:`	Level, Lower, Upper, Preset, Percent
`select:`	Cut Mode, Load Type
`binary_sensor:`	DI1–DI4, ZC1 OK, ZC2 OK, CH1/CH2 ON, LEDs

Example:

DIM#1 CH1 On (switch) → writes coil 200
DIM#1 CH1 Percent (number) → writes register 440
DIM#1 DI1 (binary_sensor) → maps discrete input 1
DIM#1 LED1 (binary_sensor) → LED status from Modbus

7.4 Override & Acknowledge Actions

The included YAML handles:

Ramp via button: components (step up/down)
Preset recall via switch: (CH ON)
DI disable/enable via modbus write
Button logic via controller or mapped automation

Use the on_turn_on: + delay: + switch.turn_off: pattern for all momentary actions (e.g., toggles).

7.5 Home Assistant Tips

Device classification is already embedded in the package
Add device_class: light to numeric outputs if desired
Use ESPHome’s delta filters to prevent value flooding
Use entity_id: contains "DIM#1" for dashboard grouping
All sensors/entities are safe to publish with on_value: logic

8. Programming & Customization

8.1 Supported Languages

Arduino / PlatformIO
C++ (direct RP2040 SDK)
(MicroPython partially supported, but not recommended for precise dimming)

8.2 Flashing the Module

The DIM‑420‑R1 includes a USB‑C interface for:

WebConfig diagnostics
Firmware updates via UF2
Serial flashing via Arduino IDE / PlatformIO

🔌 UF2 Drag-and-Drop Method

Hold Button 1 + Button 2
Connect USB-C
A drive named RPI-RP2 will appear
Drag your firmware.uf2 into it
Device reboots into normal mode

🔧 Flash via Arduino or PlatformIO

Connect USB-C
Optional: press Reset (or hold U3+U4 for hard reset)
Upload via selected COM port

Button Mapping (Front Panel)

Button	Label	Default Function	Special Use
1	U.1	Action 1	Hold with U.2 → Enter BOOT/UF2 mode
2	U.2	Action 2	Paired with U.1
3	U.3	Action 3	Hold with U.4 → Reset to firmware
4	U.4	Action 4	Paired with U.3

8.3 Arduino / PlatformIO Notes

🔌 Required Libraries

#include #include #include #include #include #include #include #include "pico/time.h" // time_us_64(), add_alarm_in_us(), alarm_id_t

9. Maintenance & Troubleshooting

🟢 LED Status

LED	Meaning
PWR	Steady = Power OK
TX	Blinks = Sending Modbus
RX	Blinks = Receiving Modbus
U.1–U.4	Firmware-controlled

🧰 Common Issues

Symptom	Fix / Tip
No RS‑485 Comms	Check A/B polarity, Slave ID, baud
LED not working	Confirm LED source and mode in WebConfig
DI not detected	Use correct GND pair and debounce logic
No USB detection	Close all serial monitors;
CH not dimming	Check ZC presence, Cut Mode, Lower/Upper

10. Open Source & Licensing

Licensing

This project uses a hybrid licensing model.

Hardware

Hardware designs (schematics, PCB layouts, BOMs) are licensed under: CERN-OHL-W v2

Firmware & ESPHome Integration

All firmware, ESPHome configurations, and software components are licensed under: MIT License

This ensures full compatibility with ESPHome and Home Assistant while protecting hardware designs.

See LICENSE files in each directory for full terms.

11. Downloads

Item	Link
Firmware Source	`/Firmware/default_DIM_420_R1`
ESPHome Config	`default_dim_420_r1_plc.yaml`
WebConfig Tool	Online Version
Schematics (PDF)	`/Schematics`
Mechanical Images	See `/Images/` in repo
Datasheet	`DIM-420-R1.pdf`

12. Support

Need help using, wiring, or flashing the DIM‑420‑R1? Try these:

Or open an issue on GitHub if you’re a developer or tester.
